Technical Description
Terminal Boxes IP69 in Individual Design

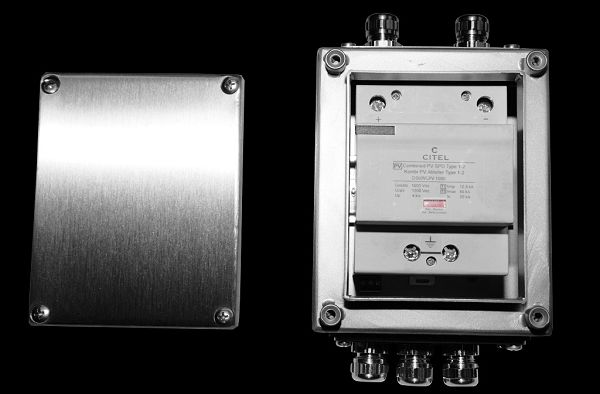

Construction Example

Download

  PDF Technical Description Terminal Boxes IP69

Request to  info@steeldesign.de

Phone consulting
0800 2646000


Assemble your individual housing. If you need any additional specifications that are not listed here, call us. We will gladly consult you about all construction and production options.


Construction Type

Basic construction with body and lid. Your benefit with terminal boxes by STEELDESIGN is a unique sealing concept that is partially patented:

  • Housing geometry, interaction between body, lid and sealing system
  • Welded-on multifunction nuts with self-centring system
  • Individual equipment
  • Free selection of housing size

Protection Class


Material

  • Stainless steel 1.4301, AISI 304
  • Stainless steel 1.4404, AISI 316L (V4A)
  • Stainless steel 1.4571, AISI 316T (V4A)
  • Other material on request

Material Thickness

  • depending on customer requirement and desired housing size, between 1.25 mm and 5 mm

Temperature Ranges

  • -40˚C to +120˚C

Tests and Certificates

  • Protection class test IP69
  • PDF download here »

Construction features

  • The lid is supported on the body 2 mm towards the inside:
  • IP69K: Protection against ingressing water/dust, knife edge seal without gap to deflect the jet from the seal, for all housing sizes



Closing

  • Welded-on multifunction nuts with self-centring system
    Screw connection with recessed screws and conical insertion that are applied outside of the sealing space


Optional:

  • Additional stainless steel hinge
  • The closure is performed by the screw connection anyway

 Wall attachment

  • IP69: Housing without attachment bore

Optional:

  • Attachment is performed via welded-on wall tabs with attachment bore (please indicate in your order)



Grounding Pursuant to VDE

  • Grounding set M6x12
  • DIN EN 60439-1:1994



Seal Depending on Area of Application

  • Silicone seal 8x12mm
  • EMC
  • Additional sealing materials can be produced on request)

Installation/Accessories Individually Prefabricated and Equipped, e.g.

  • Welded-on assembly angle of stainless steel
  • Assembly Plate
  • Serial terminals
  • Flange plate
  • Sight glasses
  • Windows
  • Wall tab set
  • Accessories of stainless steel
  • Hole patterns in laser technology
  • Cut-outs in laser technology
  • Other equipment on request

Furthermore, the housings can be produced with punched sheets and cut-outs as well, depending on customer requirements


Individual Surfaces Available

  • polished, grain size 240 or 320
  • Powder-coating
  • Paint
  • Polished
  • Satinated
  • Glass-bead-blasted
  • CleanLine Nano-coating (more information here »)
  • Laser labelling
  • Embossing
  • Screen print
  • Engraving
  • Additional surfaces on request
