Technical Description
Terminal Boxes IP66 to IP68 in Standard Design

Construction Example

Download

  PDF Technical Description Terminal Boxes Standard Design up to IP68
PDF Delivery Range Terminal Boxes IP68

Request to  info@steeldesign.de

Phone consulting
0800 2646000


Construction Type

Basic construction with body and lid. Your benefit with terminal boxes by STEELDESIGN is a unique sealing concept that is partially patented:

  • Housing geometry, interaction between body, lid and sealing system
  • Welded-on multifunction nuts with self-centring system
  • Individual equipment

Protection Class IP68

  • Information on all protection type classes here »

Material

  • Stainless steel 1.4301, AISI 304
  • Stainless steel 1.4404, AISI 316L (V4A)
  • Stainless steel 1.4571, AISI 316Ti (V4A)

Material thickness

  • The material thickness is chosen from 1.25mm
  • BL-KK 101006 (HxWxD) 100x100x60mm / t=1.25mm
  • BL-KK 406016 (HxWxD) 400x600x160mm / t=1.25mm

Temperature Ranges

  • -20˚C to +90˚C

Tests and Certificates

  • Protection type testing IP66 to IP68
    PDF download here »

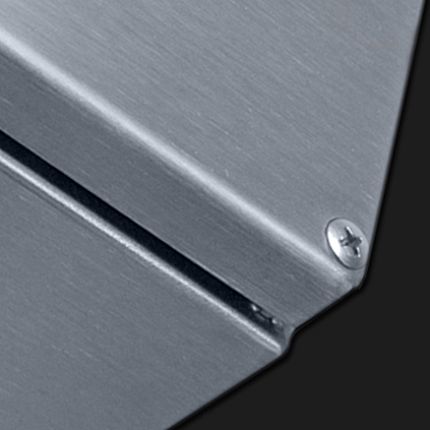

Construction features

  • The lid is supported on the body 2 mm towards the inside:
  • IP68: Protection against ingressing water/dust, knife edge seal for all housing sizes



Closing

  • Welded-on multifunction nuts with self-centring system
  • Screw connection with recessed screws and conical insertion that are applied outside of the sealing space


Optional:

  • Additional stainless steel hinge
  • The closure is performed by the screw connection anyway

Wall attachment

  • IP66: Attachment bore diameter 7mm
  • IP67/IP68: Housing without attachment bore


Optional:

  • Attachment is performed via welded-on wall tabs with attachment bore (please indicate in your order)



Grounding Pursuant to VDE

  • M6x12 mm
  • DIN EN 60439-1:1994

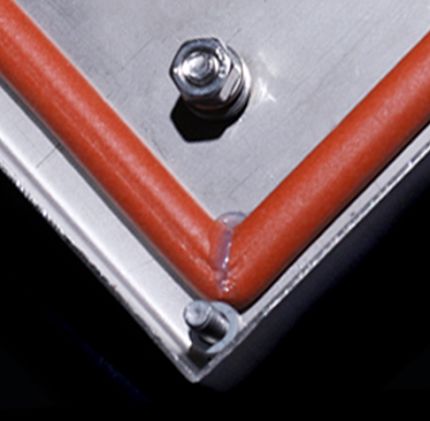

Seal

  • Silicone seal 7x10mm

Installations/Accessories

  • Welded-on assembly angle of stainless steel

Surface

  • polished, grain size 240


Terminal boxes in standard equipment IP68 with individual dimensions can be calculated and ordered online now www.gehäusekalkulator.de
