Technical Description
REX Stainless Steel Electronic Housings

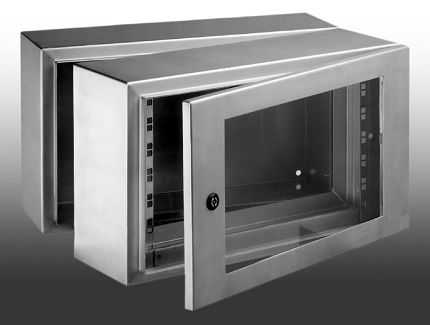

Construction Example

Construction Type

Your benefit from REX stainless steel housings of STEELDESIGN are convincing technical details:

  • Multi-part setup
  • Swivelling middle part
  • Secure up to IP65
  • Ideal for sensitive electrical components
  • Easy to install
  • Well-structured


Protection Type IP65

  • Information on all protection type classes here »

Material

  • Stainless steel 1.4301, AISI 304
  • Stainless steel 1.4404, AISI 316L (V4A)
  • Stainless steel 1.4571, AISI 316Ti (V4A)
  • Other materials on request

Material Thickness

  • depending on customer requirement and desired housing size, between 1.25 mm and 3 mm

Temperature Ranges

• -40°C to +120°C


Tests and Certificates

  • Protection class test IP65

Construction Features

  • Stainless steel 19“ – housing with swivelling middle part, front door with inserted sight glass of 6mm safety glass

The corresponding accessories are available for the individual setups

  • Stop tab for the door
  • Gas pressure spring
  • Door setup
  • Flap setup
  • Grounding belt
  • Additional accessories can be produced on request

Closure IP65

We offer our wall housings with a variety of various closure options:

Sash closure off:

  • Stainless steel
  • Zinc-die casting
  • Chrome-plated

Wall Attachment

  • 4 bores
  • Diameter 10.5 mm
  • Embossing


Optional:

  • Attachment is performed via wall tabs with attachment bore (please indicate in your order)


Installations/Accessories

Housing solutions can be individually prefabricated and equipped according to your wishes:

  • Assembly Plate
  • Z- rails
  • Serial terminals
  • Flange plate
  • Sight glasses
  • Windows
  • Wall tab set
  • accessories of stainless steel

Furthermore, the housings can be produced with punched sheets and cut-outs as well, depending on customer requirements.

Grounding Pursuant to VDE 0660

  • Grounding set M6x16
  • DIN EN 60439-1:1994

Seal depending on Area of Application

  • Neoprene seal 6x20mm
  • Silicone seal 6x20mm
  • Silicone seal 8x20mm
  • EMC
  • Combination seal EMC seal and IP protection seal
  • Additional sealing materials on request

Surface

Individual surfaces available

  • Polished, grain size 240
  • Polished, grain size 320
  • Powder-coated
  • Painted
  • Polished
  • Electropolished
  • Satinated
  • Glass-bead-blasted
  • CleanLine Nano-coating (more information here »)
  • Laser-labelled
  • Embossing
  • Screen print
  • Engraving
  • Additional surfaces on request
