Technical Description
Overpressure-Encapsulated Housings IP 66

Construction Example

To avoid entering of ignitable media, the housings are applied with permanent overpressure.

The overpressure is controlled by purchasable pneumatic control units.

To counter this additional strain, the housing is applied with a reinforcement frame from the inside.


Construction Type

Basic construction with body, door and stainless steel hinge.
Your benefit from overpressure-encapsulated housings of STEELDESIGN are convincing technical details:

  • IP66-certified sealing system
  • Stable bottom sheets
  • Additional reinforcement frame
  • There is a permanent overpressure in the housing


Protection Class IP66

  • Information on all protection type classes here »

Material

  • Stainless steel 1.4301, AISI 304
  • Stainless steel 1.4404, AISI 316L (V4A)
  • Stainless steel 1.4571, AISI 316Ti (V4A)

Material Thickness

  • Material thickness > = 2mm

Temperature Ranges

  • -40°C to +120°C

Tests and Certificates

Standing cabinets / wall cabinets / printer cabinet

  • Protection class test IP66

Setup

  • Fully welded basic construction
  • Additional reinforcement frame in the body and lid is applied

Doors

  • Robust doors with reinforcement frame and assembly rails
  • Door stop right
  • Door stop left
  • Middle bridge fixed
  • Door reinforcement with transverse braces to take up cable ducts

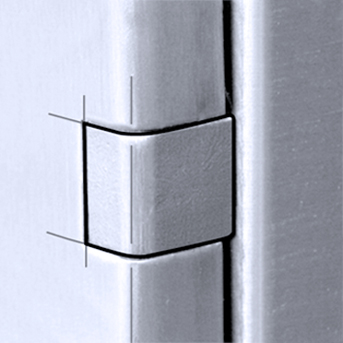

Hinges

• Overpressure-encapsulated housings are delivered with stainless steel hinges, opening angle 180°

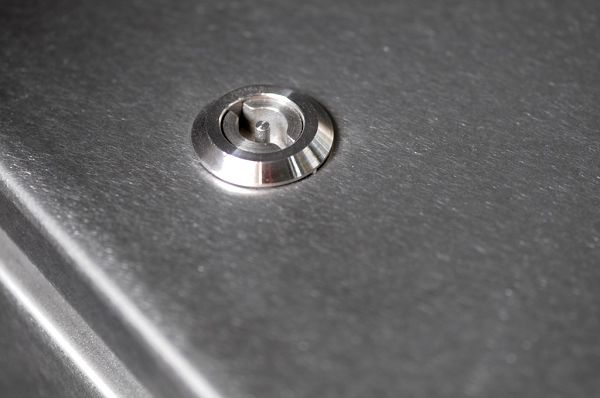

Closing

We offer our overpressure-encapsulated cabinets with a variety of various closure options:

Sash closure of:

  • Stainless steel
  • Zinc-die casting
  • Chrome-plated
The corresponding sashes have a double bit of 3mm, a square, a triangle or a locking cylinder.

Grounding pursuant to VDE 0660

  • Grounding set M6x16
  • DIN EN 60439-1:1994

Seal Depending on Area of Application

  • Neoprene seal 6x20 mm
  • Silikone seal 6x20 mm
  • Silikone seal 8x20 mm
  • Additional sealing materials on request

Assembly Plate

  • Steel sheet zinc-plated/stainless steel
  • 2-3 mm material thickness

Installations/Accessories for Overpressure-Encapsulated Cabinets

Housing solutions can be individually prefabricated and equipped according to your wishes:

  • Assembly Plate
  • Z- rails
  • Wall tab set
  • Cable screw connection
  • Crane eyelets
  • Rain roof
  • Flange plates
  • Swivel frame
  • 19“ grid rails
  • Additional accessories on request
Furthermore, the housings can be produced with punched sheets and cut-outs as well, depending on customer requirements.

Individual Surfaces Available

  • polished, grain size 240 or 320
  • Powder-coating
  • Paint
  • Polished
  • Satinated
  • Glass-bead-blasted
  • CleanLine Nano-coating (more information here »)
  • Laser labelling
  • Embossing
  • Screen print
  • Engraving
  • Additional surfaces on request
