Technical Description
PANELS
Our panel solutions from IP66, IP69K to the HygienicDesign are available according to customer requirements.

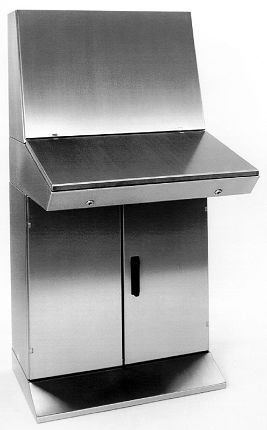

Construction Example
Construction Type
|
 |
|
Basic construction with body, door and stainless steel hinge. Your benefit from PULTE of STEELDESIGN are convincing technical details:
- IP66-certified sealing system
- IP69K-certified sealing system
- Hygienic Design
- Housing geometry and accessories
- Complete solution available
- Overpressure-encapsulated design possible
|
Protection Class IP66
- Information on all protection type classes here »
|
|
 |
|
Material
- Stainless steel 1.4301, AISI 304
- Stainless steel 1.4404, AISI 316L (V4A)
- Stainless steel 1.4571, AISI 316Ti (V4A)
- Other material on request
|
|
 |
|
Material Thickness
- depending on customer requirement and desired housing size, between 1.25 mm and 3 mm
|
|
 |
|
Temperature Ranges
|
|
|
|
|
Tests and Certificates
- Protection class test IP66
|
|
|
|
Door and Setup
- Door stop right
- Door stop left
- Panel door stop top/bottom
The corresponding accessories are available for the individual setups:
- Stop tab for the door
- Gas pressure spring
- Door setup
- Flap setup
- Grounding belt
- Additional accessories can be produced on request
|
|
 |
|
Closure IP66
We offer our PULTE with a variety of various closure options:
Sash closure of:
- Stainless steel
- Zinc-die casting
- Chrome-plated
The corresponding sashes have a double bit of 3mm, a square, a triangle or a locking cylinder. |
|
 |
|
Hinges
Our wall housings can be delivered with various types of hinges:
- Stainless steel hinges on the inside below the door contour has an opening angle of 130°
- Alternatively, there are 180° stainless steel hinges in the door contour, opening angle 180°.
- Lifting-lowering hinge for HygienicDesign applications.
|
|
|
|
|
Installations/Accessories
Housing solutions can be individually prefabricated and equipped according to your wishes:
- Assembly Plate
- Serial terminals
- Flange plate
- Sight glasses
- Windows
- Wall tab set
- Cable screw connection
- Rain roof
- accessories of stainless steel
Furthermore, the housings can be produced with punched sheets and cut-outs as well, depending on customer requirements. |
|
 |
|
Grounding pursuant to VDE 0660
- Grounding set M6x16
- DIN EN 60439-1:1994
|
|
 |
|
Seal Depending on Area of Application
- Neoprene seal 6x20mm
- Silicone seal 6x20mm
- Silicone seal 8x20mm
- EMC
- Combination seal EMC seal and IP protection seal
- Hygienic Design seal
- Additional sealing materials on request
|
|
 |
|
Surface
Individual surfaces available
- Polished, grain size 240
- Polished, grain size 320
- Powder-coated
- Painted
- Polished
- Electropolished
- Satinated
- Glass-bead-blasted
- CleanLine (Nano-coating)
- Laser-labelled
- Embossing
- Screen print
- Engraving
- Additional surfaces on request
|
