Technical Description
Terminal Boxes IP69 in Standard Design

Construction Example

Download

  PDF Terminal Boxes Standard Design IP69
PDF Delivery Range Wall Housing up to IP69

Request to  info@steeldesign.de
Phone Consulting
0800 2646000



Construction Type

Basic construction with body and lid. Your benefit with terminal boxes by STEELDESIGN is a unique sealing concept that is partially patented:
  • Housing geometry, interaction between body, lid and sealing system
  • Welded-on multifunction nuts with self-centring system
  • Individual equipment

Protection Class IP69


Material

  • Stainless steel 1.4301, AISI 304
  • Stainless steel 1.4404, AISI 316L (V4A)
  • Stainless steel 1.4571, AISI 316Ti (V4A)

Material thickness

  • The material thickness is chosen from 1.25mm
  • BL-KK 101006 (HxWxD) 100x100x60mm / t=1.25mm
  • BL-KK 406016 (HxWxD) 400x600x160mm / t=1.25mm

Temperature Ranges

  • -40˚C to +90˚C

Tests and Certificates

  • Protection class test IP69
  • PDF download here »

Construction Features

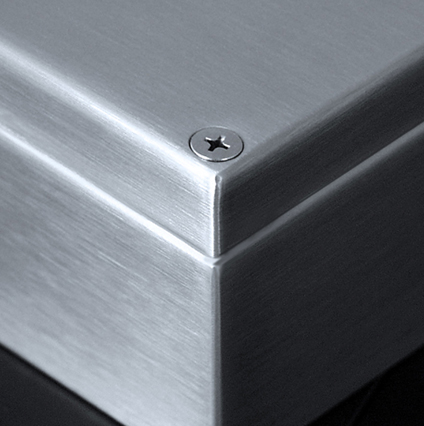

  • The lid is supported on the body 2 mm towards the inside:
  • IP 69K: Protection against ingressing water/dust, knife edge seal without gap to deflect the jet from the seal, for all housing sizes




Closing

  • Welded-on multifunction nuts with self-centring system
  • Screw connection with recessed screws and conical insertion that are applied outside of the sealing space

Optional:

  • Additional stainless steel hinge
  • closure is performed by the screw connection anyway

 Wall attachment

  • IP69: Housing without attachment bore

Optional:

  • Attachment is performed via welded-on wall tabs with attachment bore(please indicate in your order)



Grounding Pursuant to VDE

  • Grounding set M6x12
  • DIN EN 60439-1:1994



Seal

  • Silicone seal 8x12 mm

Installations/Accessories

  • Welded-on assembly angle of stainless steel

Surface

  • polished, grain size 240
