G.L.E.D. Stainless Steel Housings

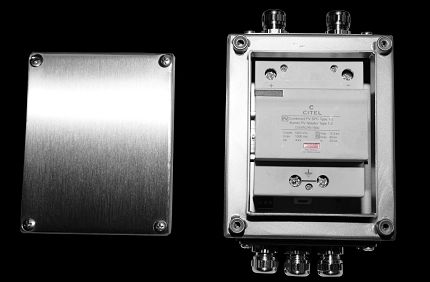

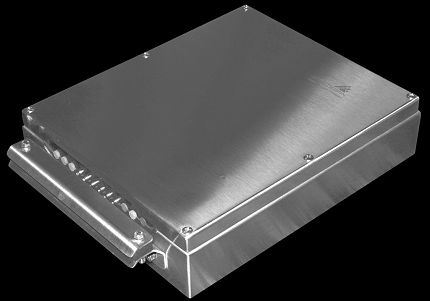

Construction Example

Construction Example

Construction Type

Your benefit from G.L.E.D stainless steel housings of STEELDESIGN are convincing technical details:

  • Lightning-fast wiring in the Industrial Ethernet
  • Secure up to IP68
  • Patented technology with unique 2-component seal
  • 4-screws Quick-Open
  • Used in all industrial areas


Protection Class IP68

  • Information on all protection type classes here »

Material

  • Stainless steel 1.4301, AISI 304
  • Stainless steel 1.4404, AISI 316L (V4A)
  • Stainless steel 1.4571, AISI 316Ti (V4A)
  • Other material on request

Material Thickness

  • depending on customer requirement and desired housing size, between 1.25 mm and 3 mm

Temperature Ranges

• -40°C to +120°C

Tests and Certificates

  • Protection class test IP68

Construction Features

  • The lid is supported on the body 2 mm towards the inside:
  • IP68: Protection against ingressing water/dust, knife edge seal without gap for all housing sizes
  • Submersion tight to > 1m

The Corresponding Accessories are Available for the Individual Setups

  • Stop tab for the door
  • Gas pressure spring
  • Door setup
  • Flap setup
  • Grounding belt
  • Additional accessories can be produced on request

Closure IP68

  • Welded-on multifunction nuts

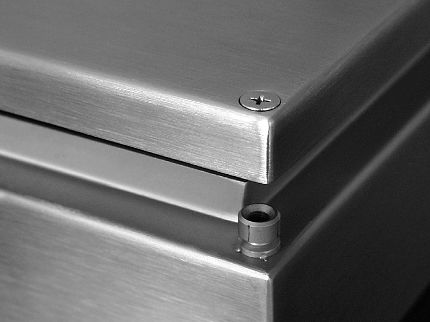

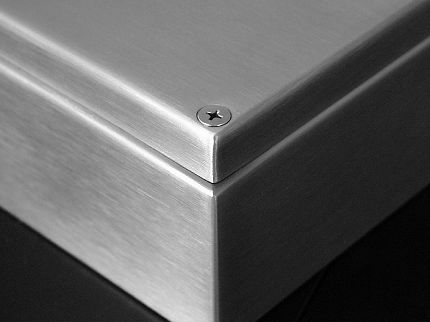

  • Screw connection with recessed screws and conical insertion that are applied outside of the sealing space

Wall Attachment

  • IP66: Attachment bore diameter 7 mm
  • IP67/IP68: Housing without attachment bore

Optional:

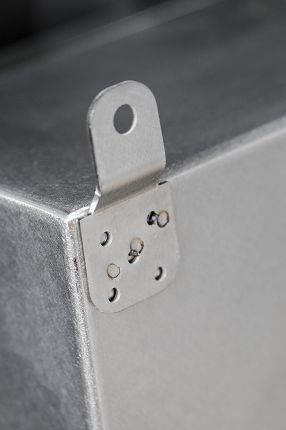

  • Attachment is performed via welded-on wall tabs with attachment bore (please indicate in your order)


Installations/Accessories

Housing solutions can be individually prefabricated and equipped according to your wishes:

  • Assembly Plate
  • Serial terminals
  • Flange plate
  • Sight glasses
  • Wall tab set
  • accessories of stainless steel

Grounding Pursuant to VDE 0660

  • Grounding set M6x16
  • DIN EN 60439-1:1994

Seal Depending on Area of Application

Unique 2- Component Seal

  • Neoprene seal 6x20 mm

Surface

Individual surfaces available

  • Polished, grain size 240
  • Polished, grain size 320
  • Polished
  • Electropolished
  • Satinated
  • Glass-bead-blasted
  • Laser-labelled
  • Embossing
  • Screen print
  • Engraving
  • Additional surfaces on request
